Quadruped robots

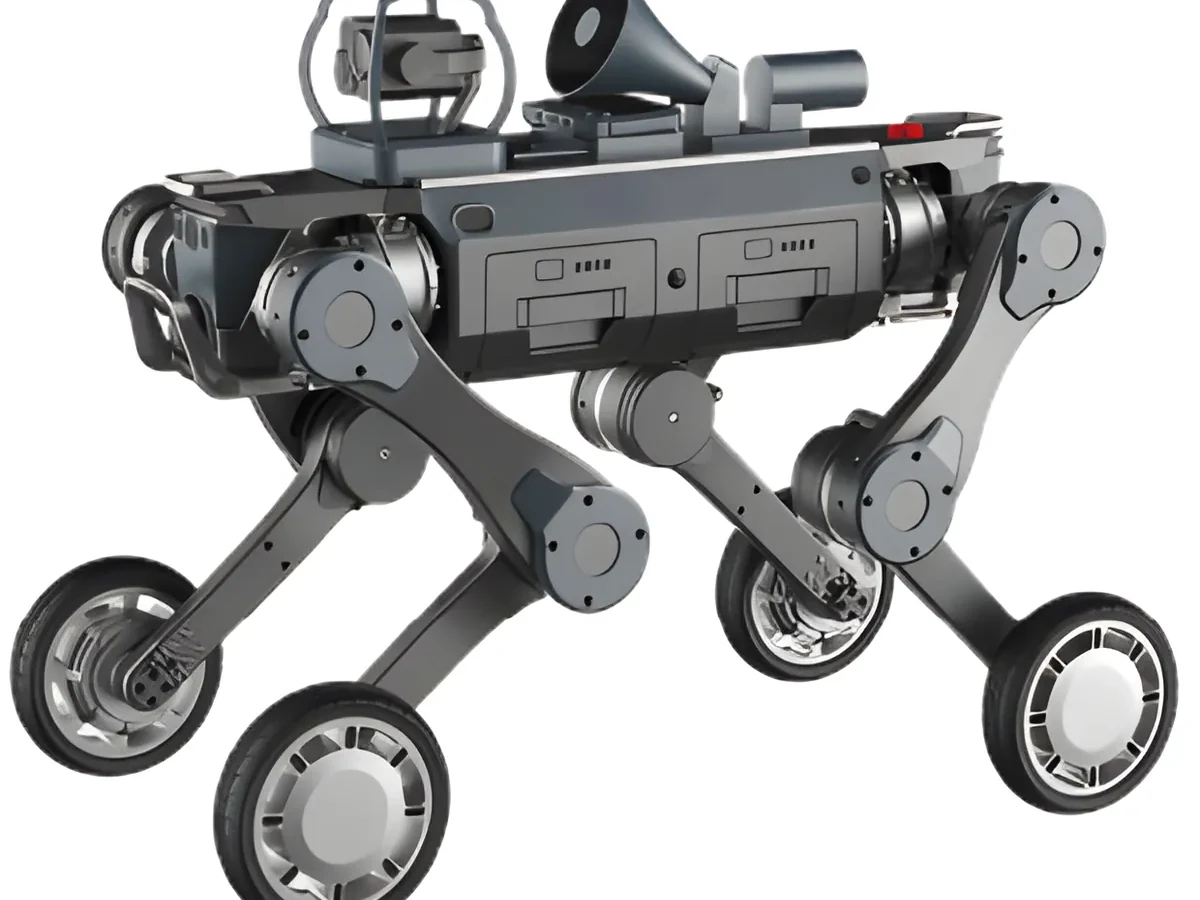

AGIBOT D1 Max
Wheel-leg quadruped for inspection and patrol
Non-binding · no checkout
Manufacturer/supplier reference data, not independently verified. Configuration, EU conformity, safe integration and regional availability require confirmation before quotation.
At a glance
- Standing dimensions
- 920 × 480 × 570 mm (L × W × H)
- Weight (with battery)
- 40 kg
- Effective payload
- 25 kg rated payload (manufacturer reference)
D1 Max combines wheel and leg mobility for inspection and patrol applications. The manufacturer lists a rated payload of 25 kg. LiDAR, cameras and RTK positioning support navigation; operating performance and configuration are confirmed for each project.
- Pricing
- Individual quotation on request
- Availability
- Subject to project-specific confirmation
Highlights
- Wheel and leg mobility; maximum speed to be confirmed for the quoted configuration
- Manufacturer-stated rated payload: 25 kg
- Manufacturer reference range: at least 29 km unloaded / 18 km fully loaded; battery runtime confirmed for the application
- 22 cm stairs, 45° slope, 80 cm jump and obstacle crossing
- 2 × 192-line LiDAR (360° × 90°, 120 m), 2 × 8 MP FPV cameras, GNSS RTK, ultrasonic sensors
- IP67, −20 °C to 55 °C; 480 W expansion power; SDK
Specifications
Configuration note: Conflicting runtime and speed figures are withheld pending configuration confirmation. Rated payload is 25 kg according to the manufacturer reference; range and terrain performance depend on operating conditions.
| Standing dimensions | 920 × 480 × 570 mm (L × W × H) |
|---|---|
| Weight (with battery) | 40 kg |
| Effective payload | 25 kg rated payload (manufacturer reference) |
| Battery | 10 Ah, 54 V; charging < 2 h |
| Battery life | Configuration-specific value to be confirmed with quotation |
| Range | 29 km no-load; 18 km full-load |
| Max. speed | Configuration-specific value to be confirmed with quotation |
| Stair climbing | 22 cm continuous |
| Max. climbing angle | 45° |
| Jump / obstacle | 80 cm |
| Max. joint torque | 150 N·m |
| LiDAR | 2 × 192-line, 360° × 90°, 120 m |
| Cameras | 2 × 8 MP FPV, DFOV 122°; 4 fill lights |
| Positioning | GNSS RTK; ultrasonic sensors up to 5 m |
| Protection | IP67; −20 °C to 55 °C |
| Expansion | 2 × GbE, 2 × USB 3.0, RS-232, RS-485, 2 × SBUS, PPS; 5/12/24/48 V up to 480 W; SDK |
Cited source: AGIBOT D1 Max Quadruped Robot – Technical Specification Sheet (2026).
Applications
- Inspection & security patrol
- Research & development
- Manufacturing & logistics
